云终端 | 云终端OX47-355（J1800）BIOS完整设置

BIOS通用版本实例

机器型号：J1900/J1800主板

BIOS日期：07/01/2019

BIOS版本：X62EC074

BIOS设置进入按键：DELETE

快速启动菜单进入按键：F12

BIOS登入密码： vdiadmin

BIOS界面截图及设置

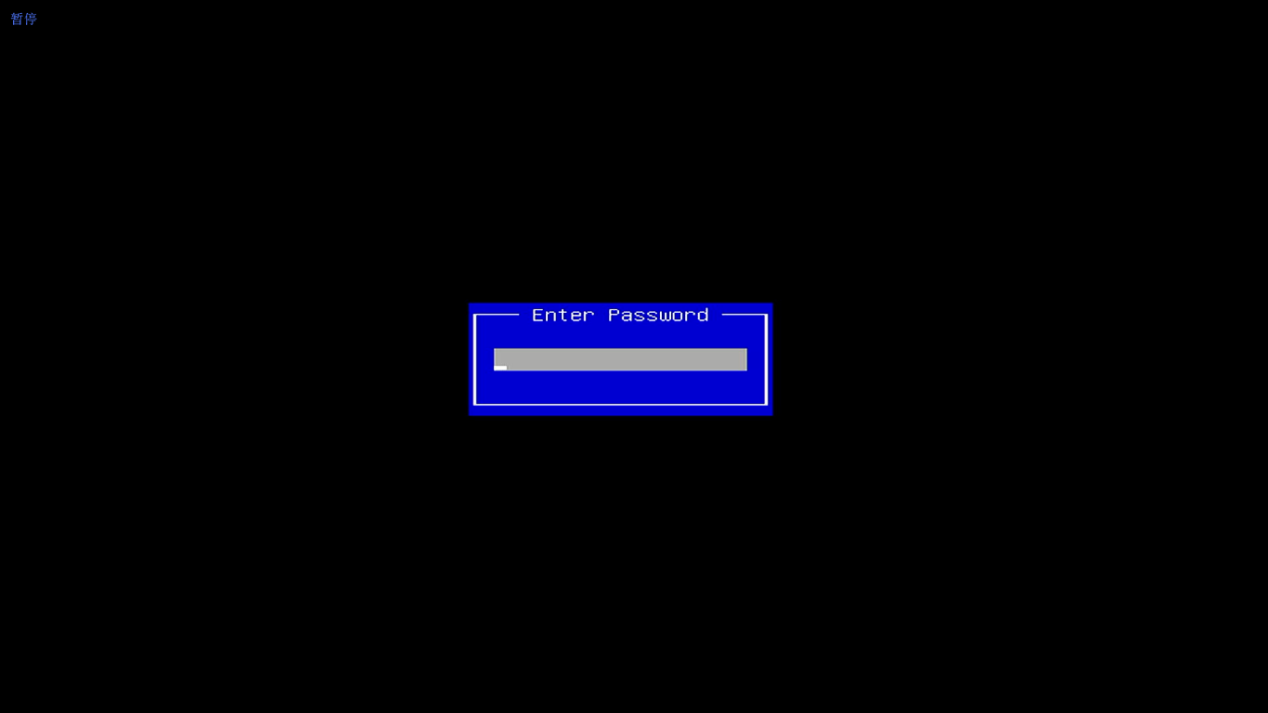

▶BIOS登入密码界面

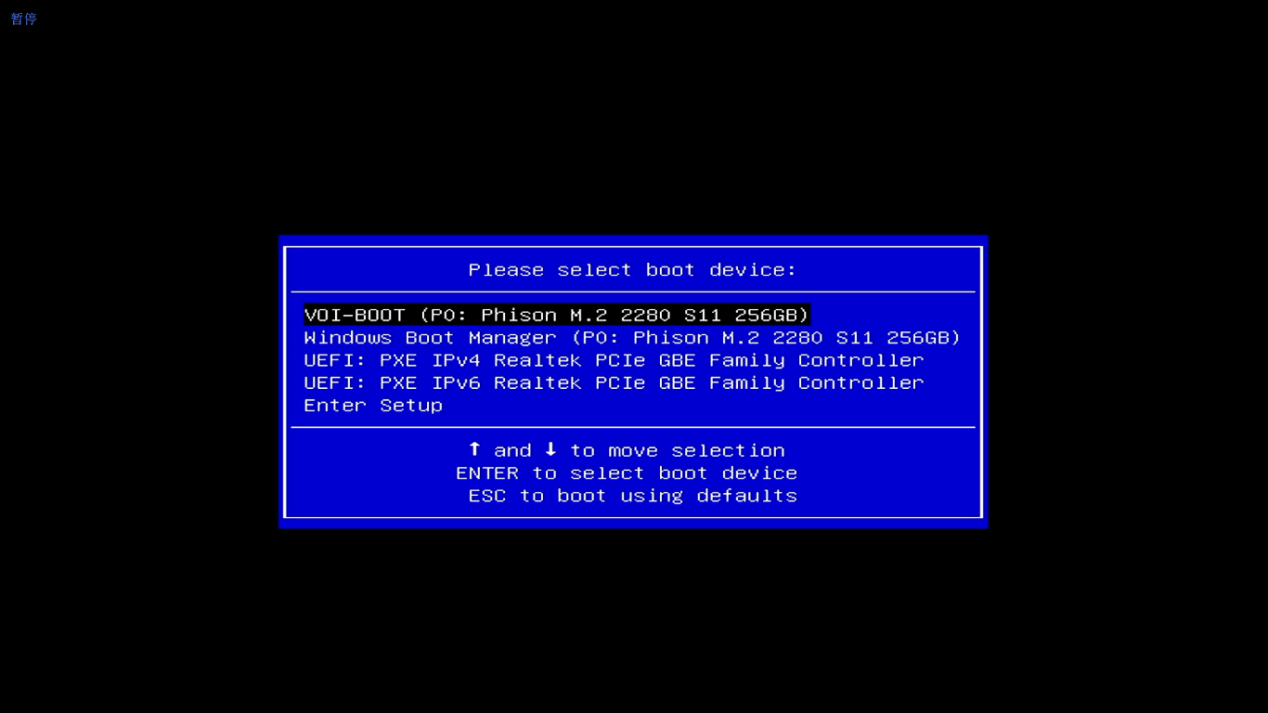

▶快速启动菜单界面

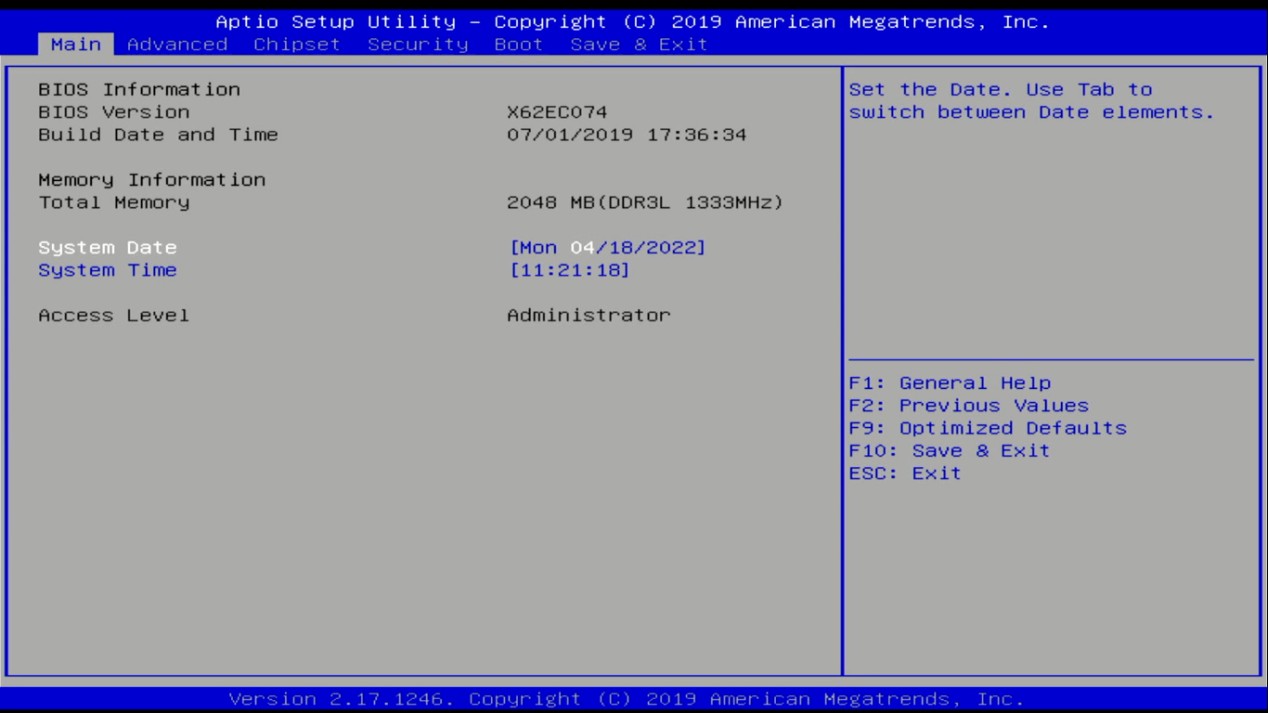

BIOS主界面

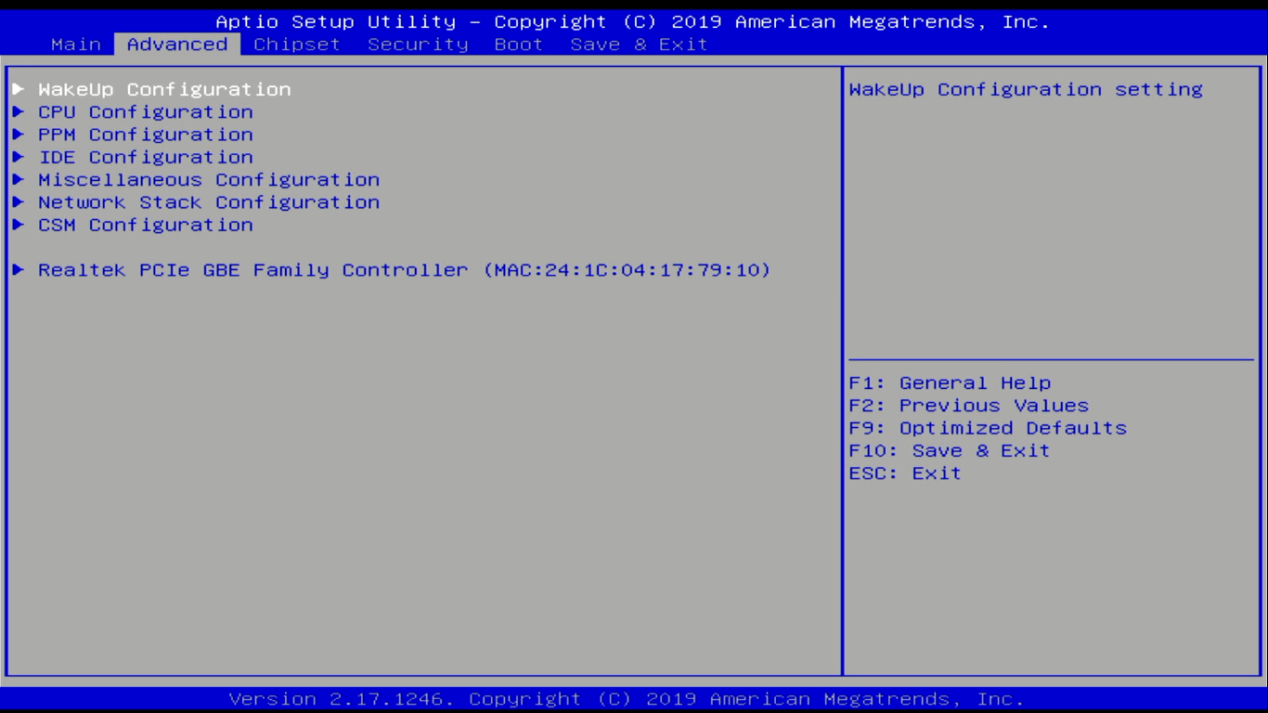

Advanced界面

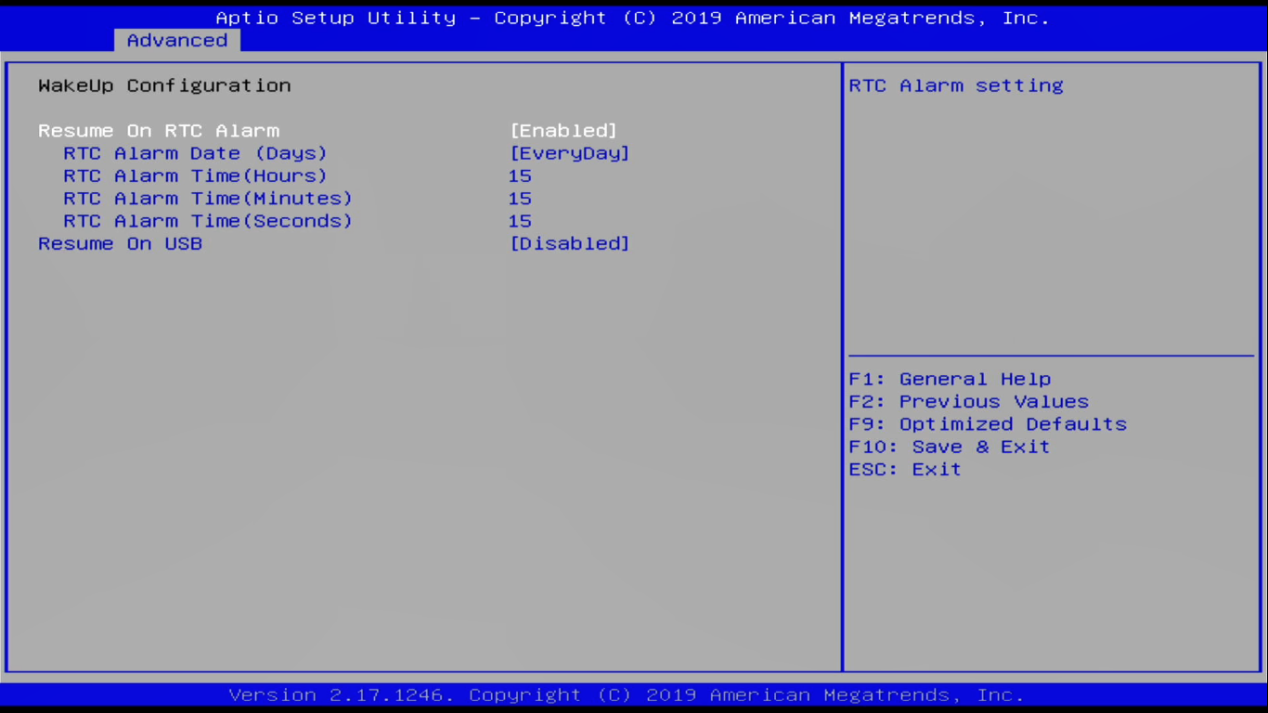

▶设置定时开关机

Advanced---WakeUp Configuration---Resume On RTC Alarm---Enabled

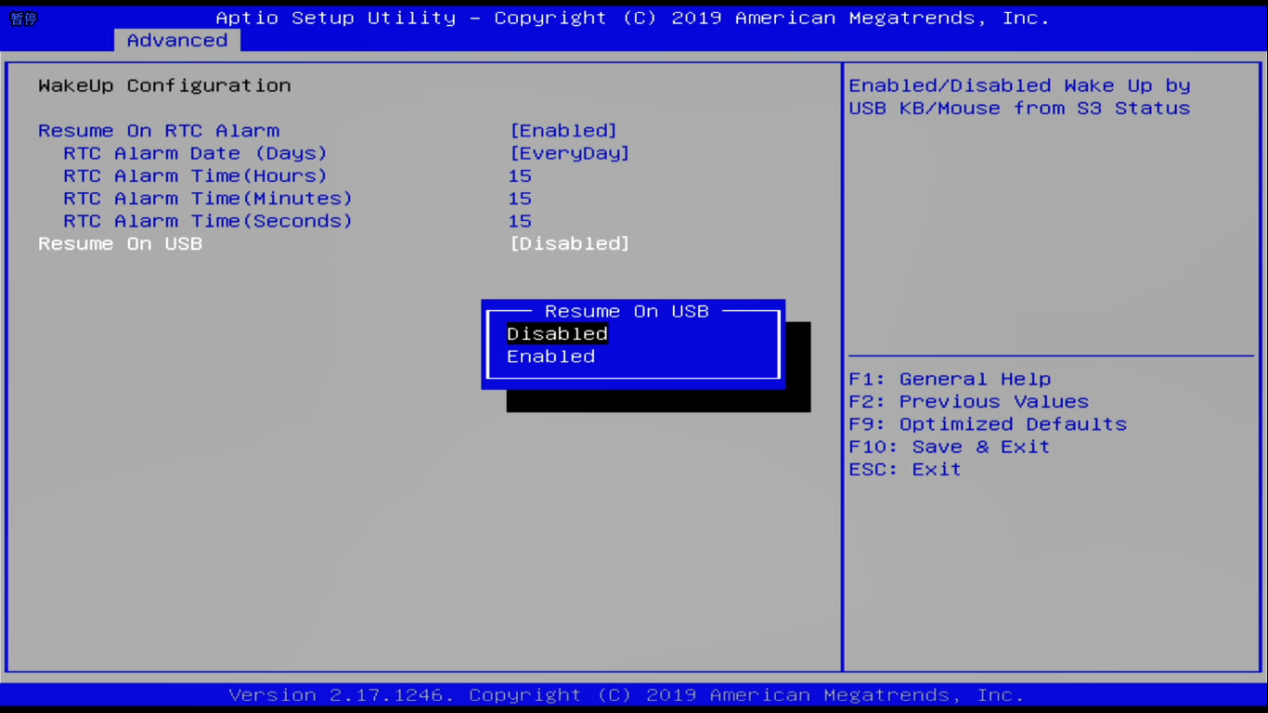

▶设置USB唤醒

Advanced---WakeUp Configuration---Resume On USB

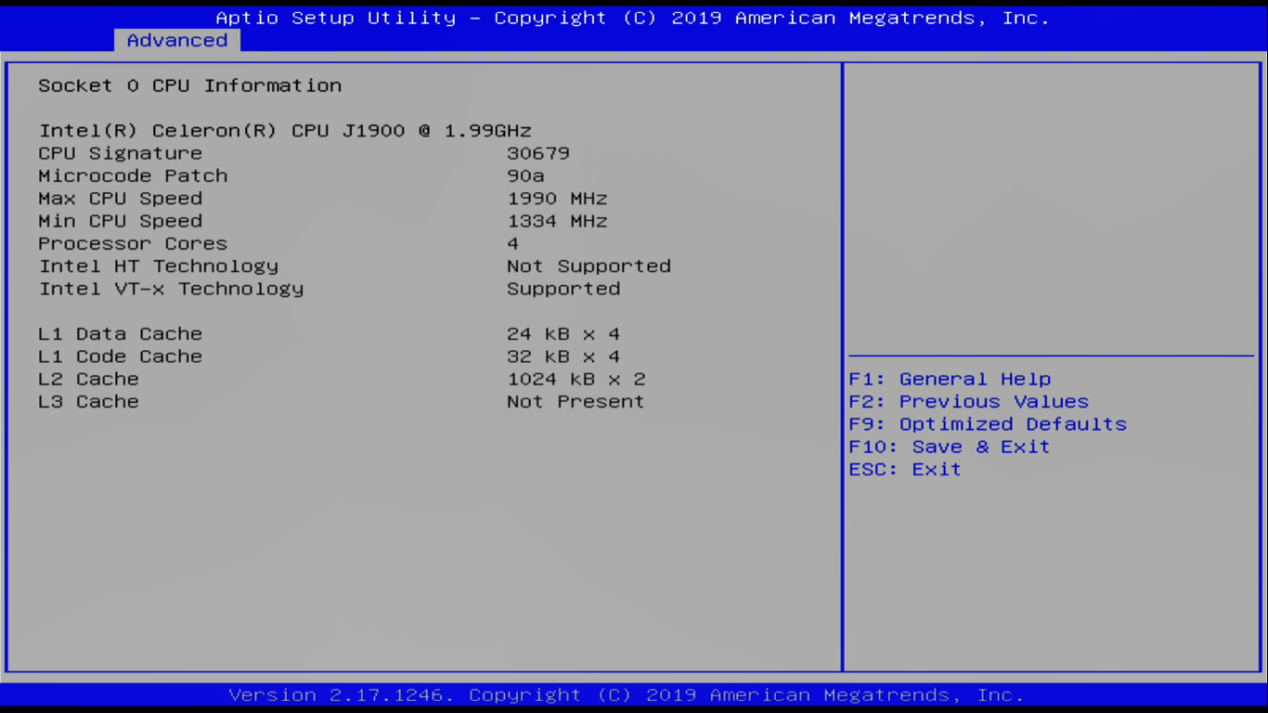

▶CPU信息

Advanced---CPU Configuration--- Socket 0 CPU Information

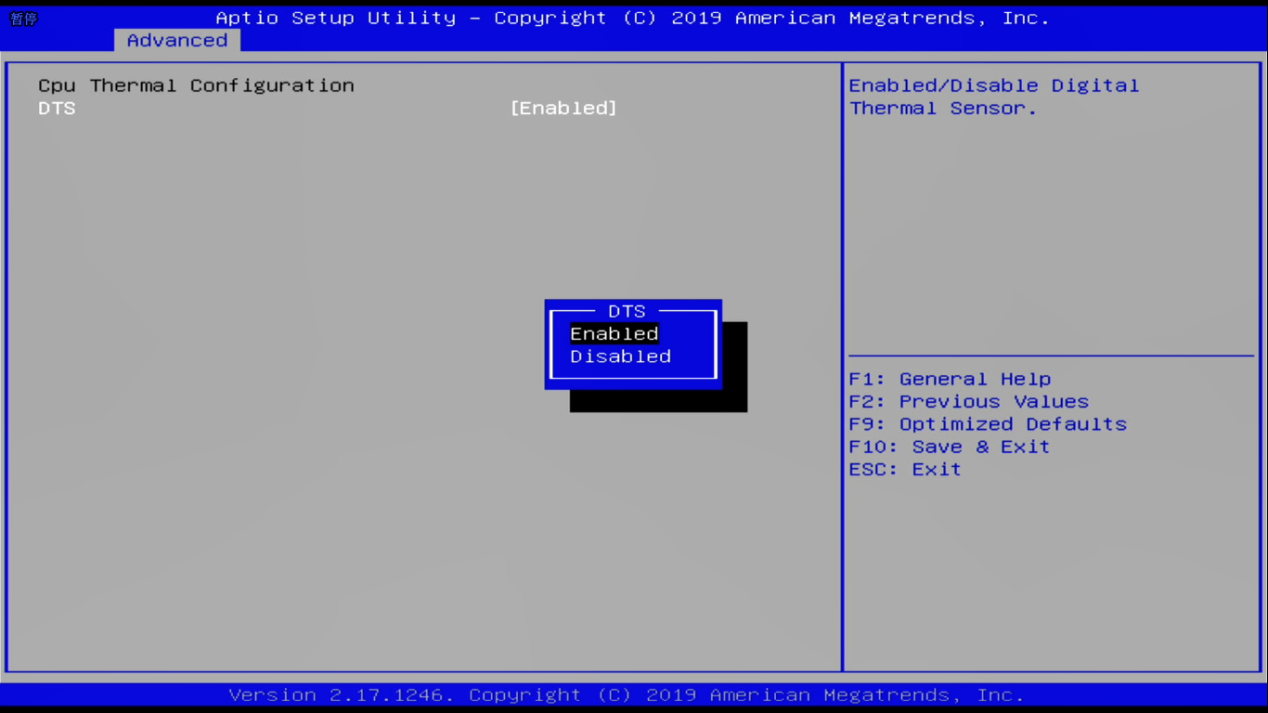

▶CPU散热设置

Advanced---CPU Configuration---Cpu Thermal Configuration

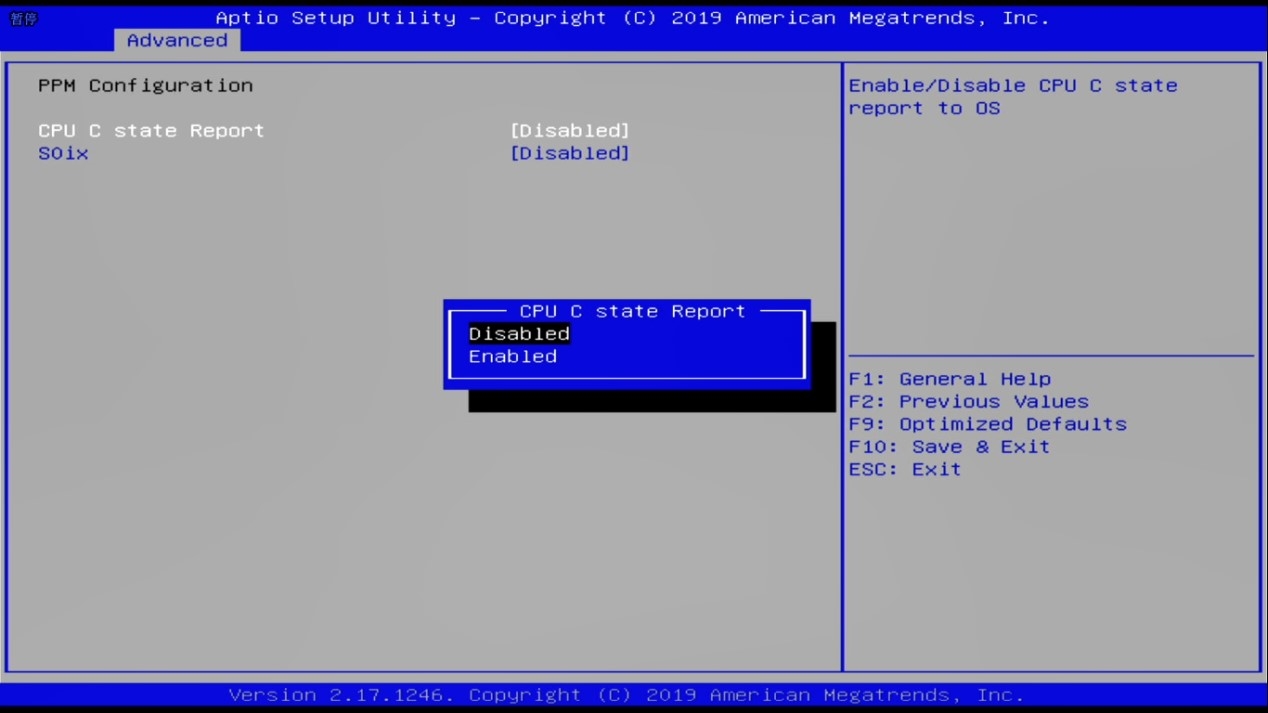

▶CPU状态报告

Advanced---PPM  Configuration---CPU C state Report

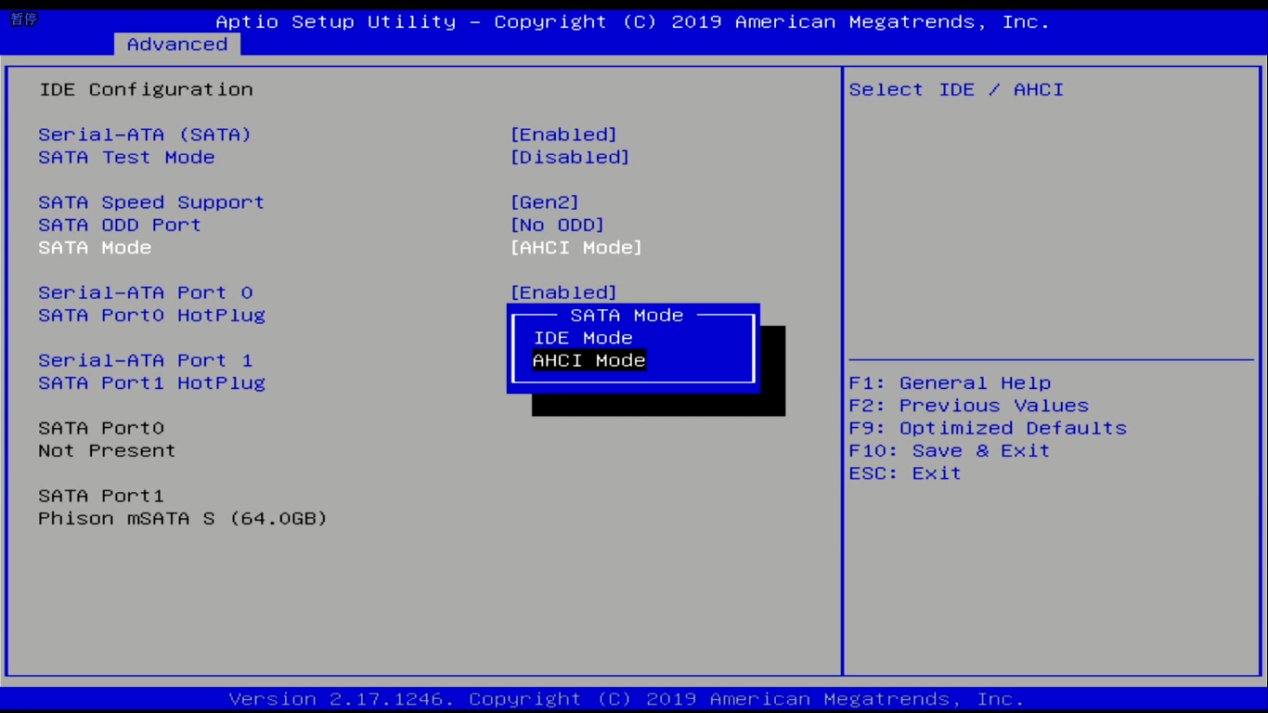

▶设置硬盘模式为

AHCIAdvanced---IDE Configuration---SATA Mode---AHCI Mode

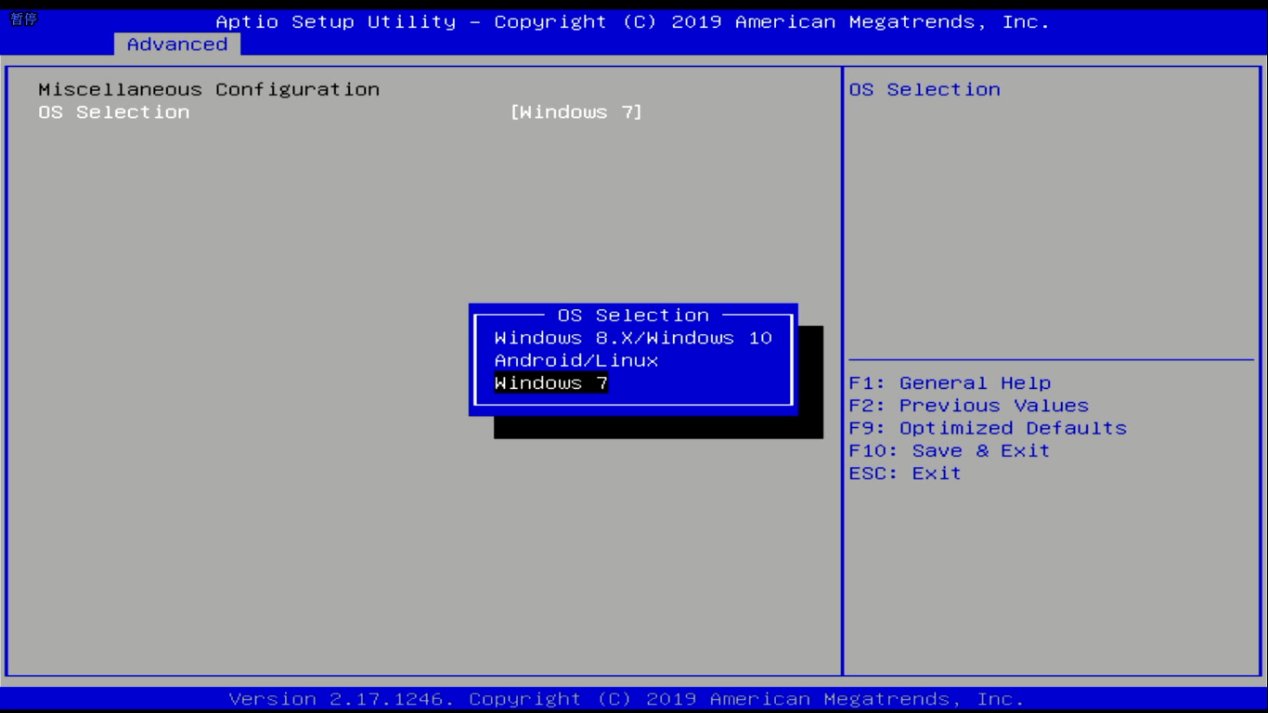

▶设置系统兼容选项

Advanced---Miscellaneous Configuration----OS Selection----Windows7

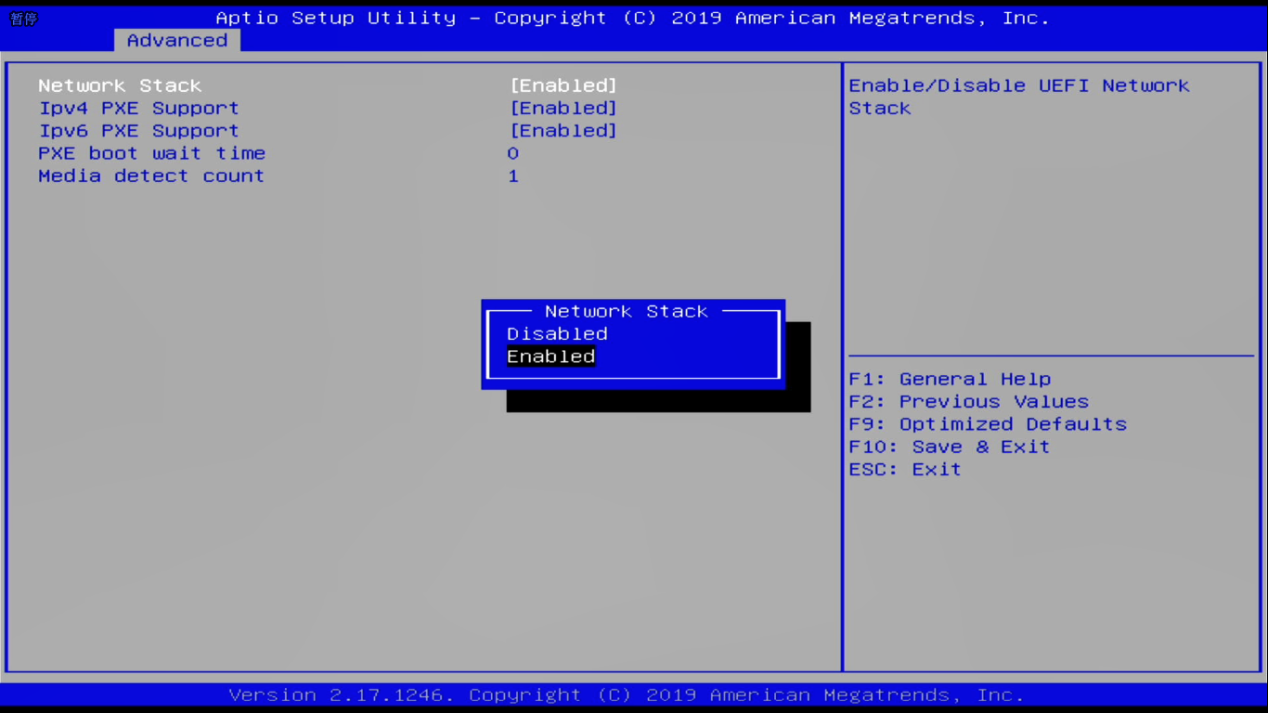

▶开启网络堆栈

Advanced---Network Stack Configuration---Network Stack---Enabled

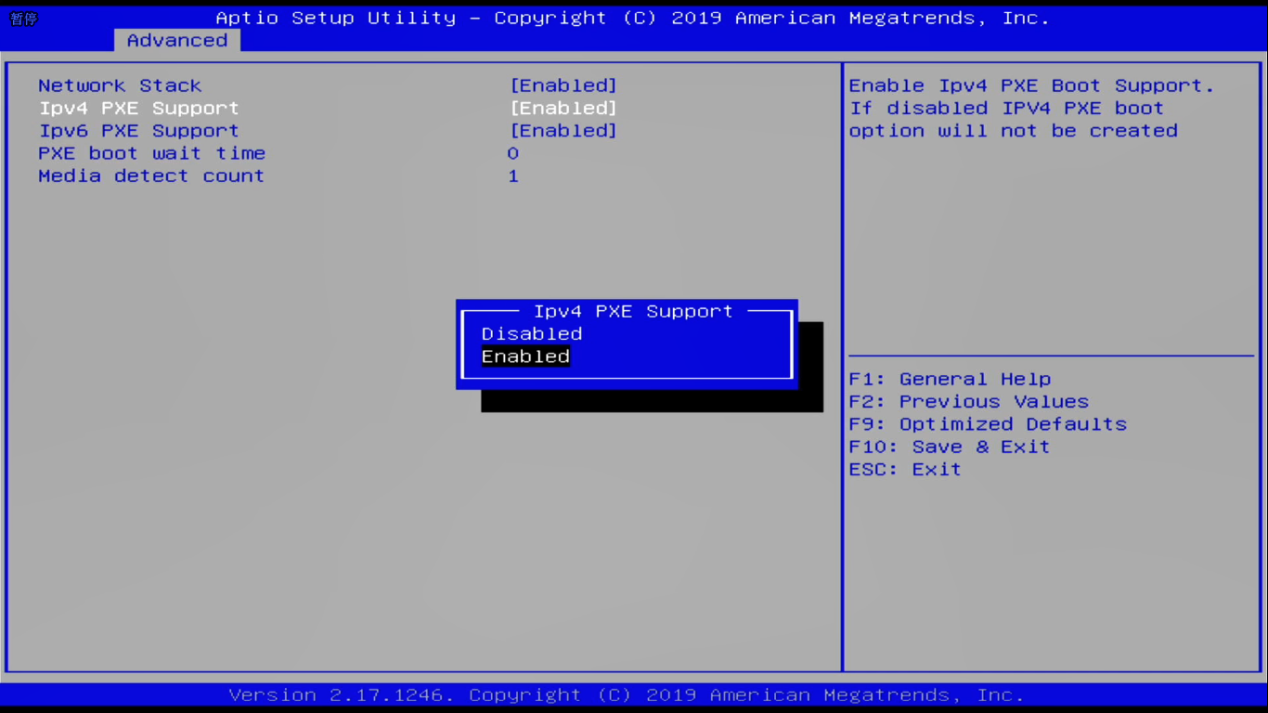

▶开启IPV4

Advanced---Network Stack Configuration---Network Stack---Enabled---Ipv4 PXE Support---Enabled

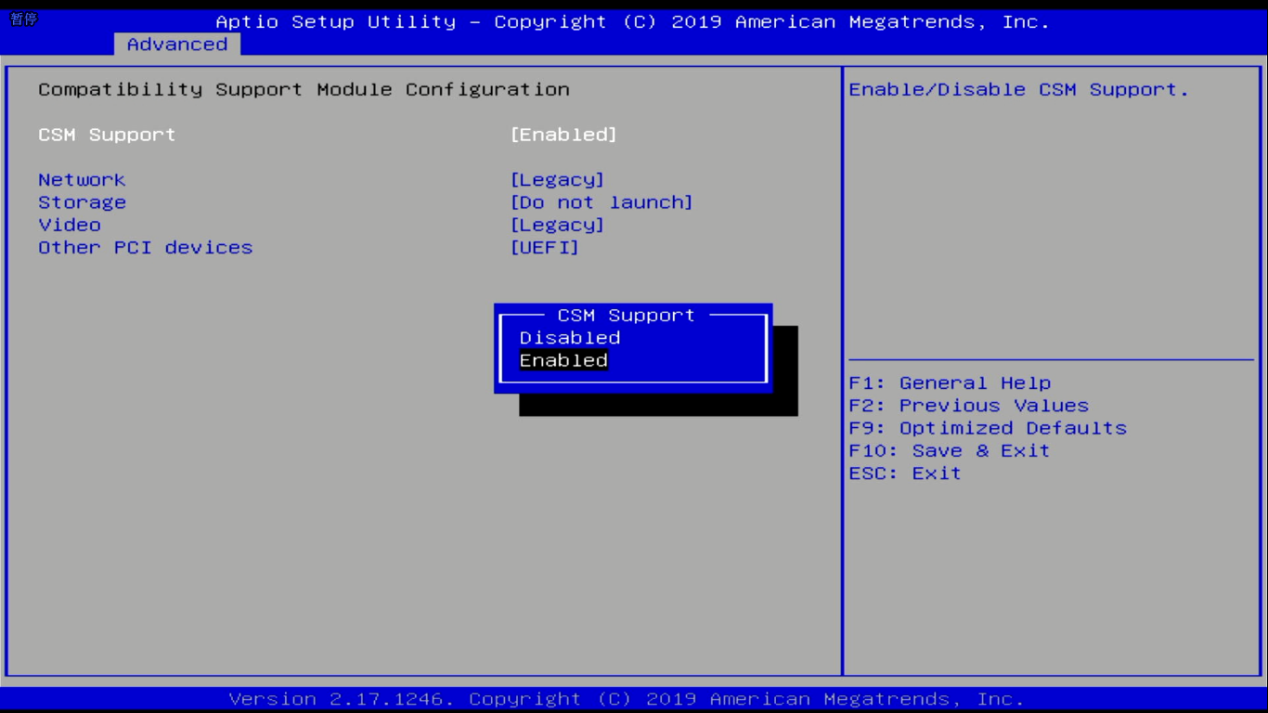

▶打开CSM兼容模式

Advanced---CSM configuration---CSM support---Enabled

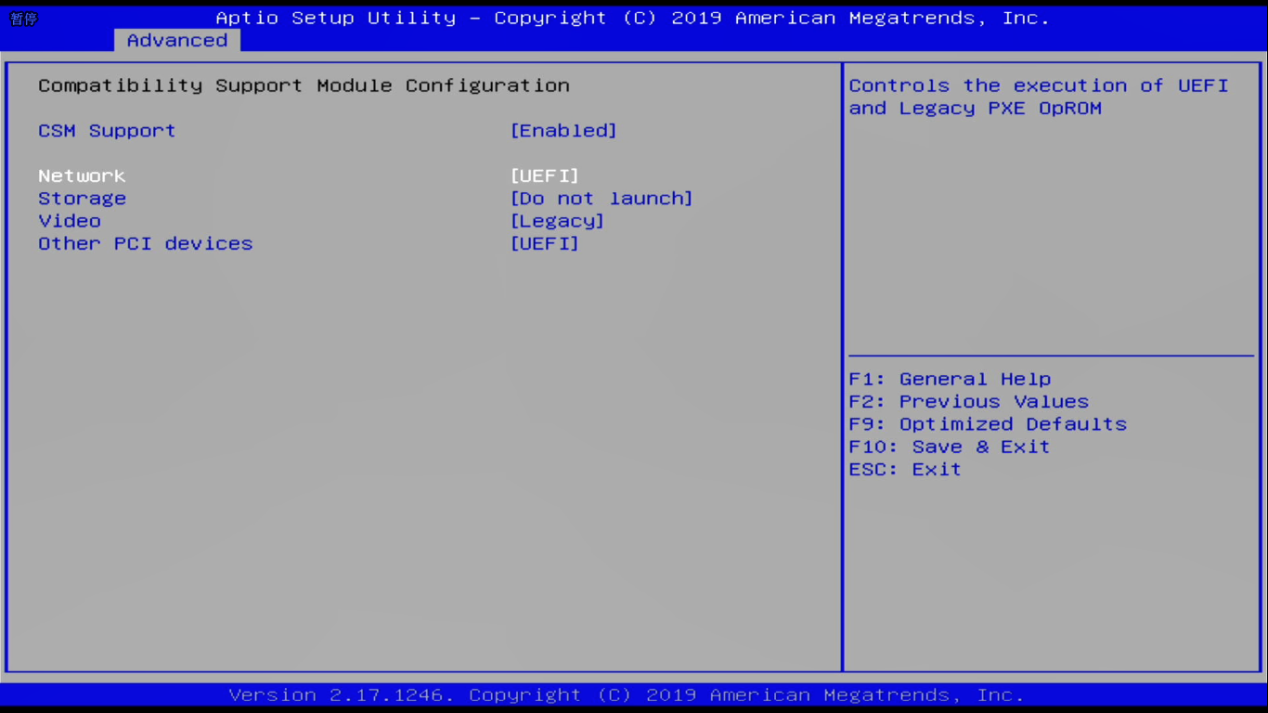

▶设置UEFI启动

Advanced---CSM configuration---network---UEFI

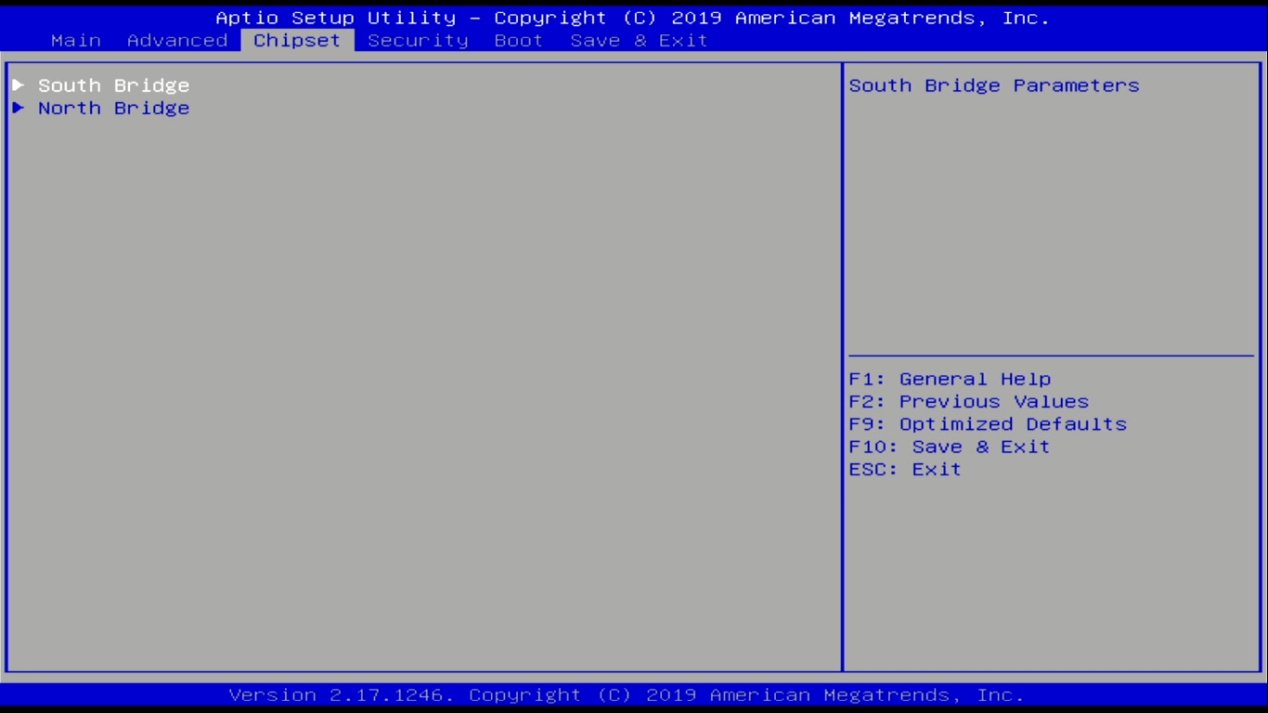

Chipset界面

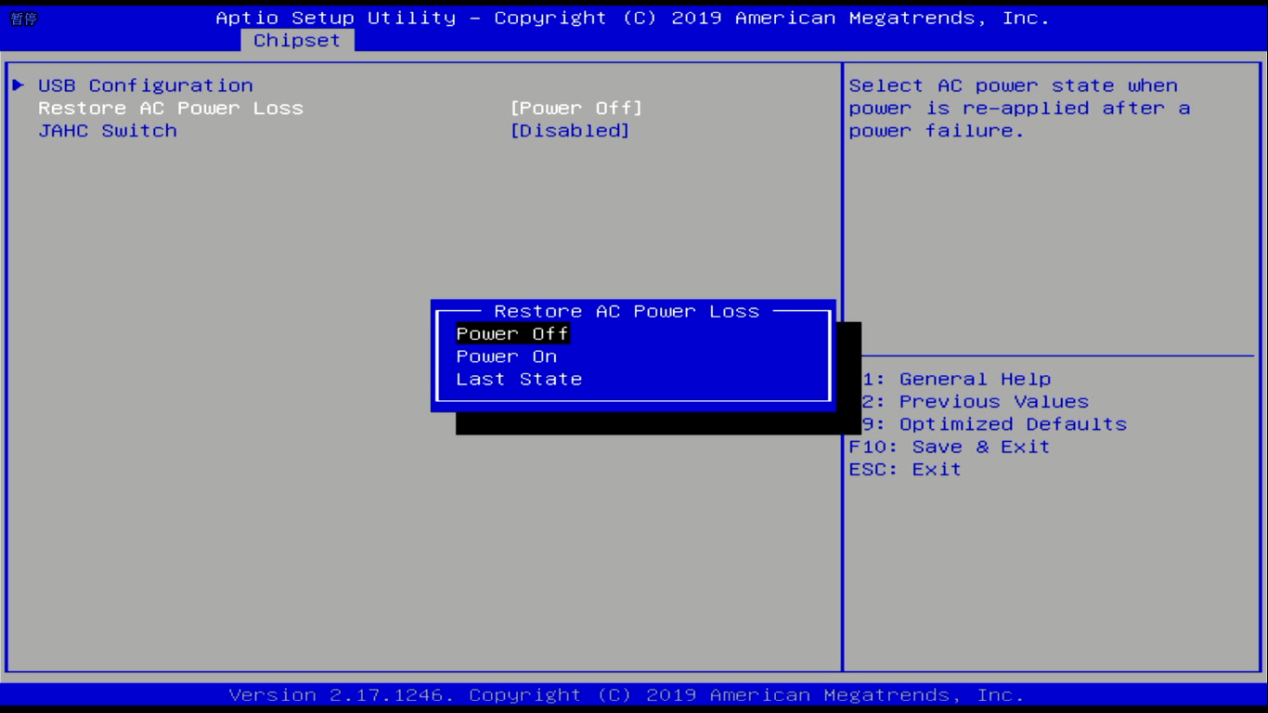

▶设置通电自启

Chipset---South Bridge---Restore AC Power Loss----Power On

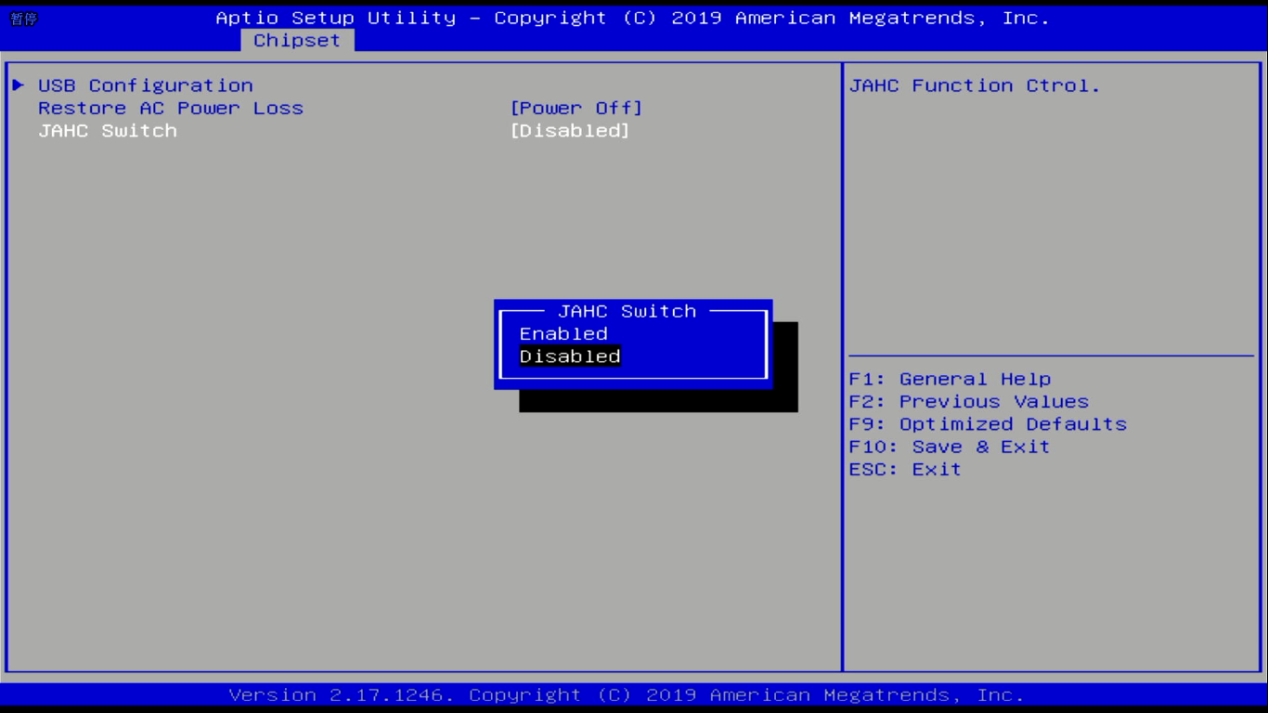

▶设置网络唤醒

Chipset---South Bridge---JAHC Switch---Enable

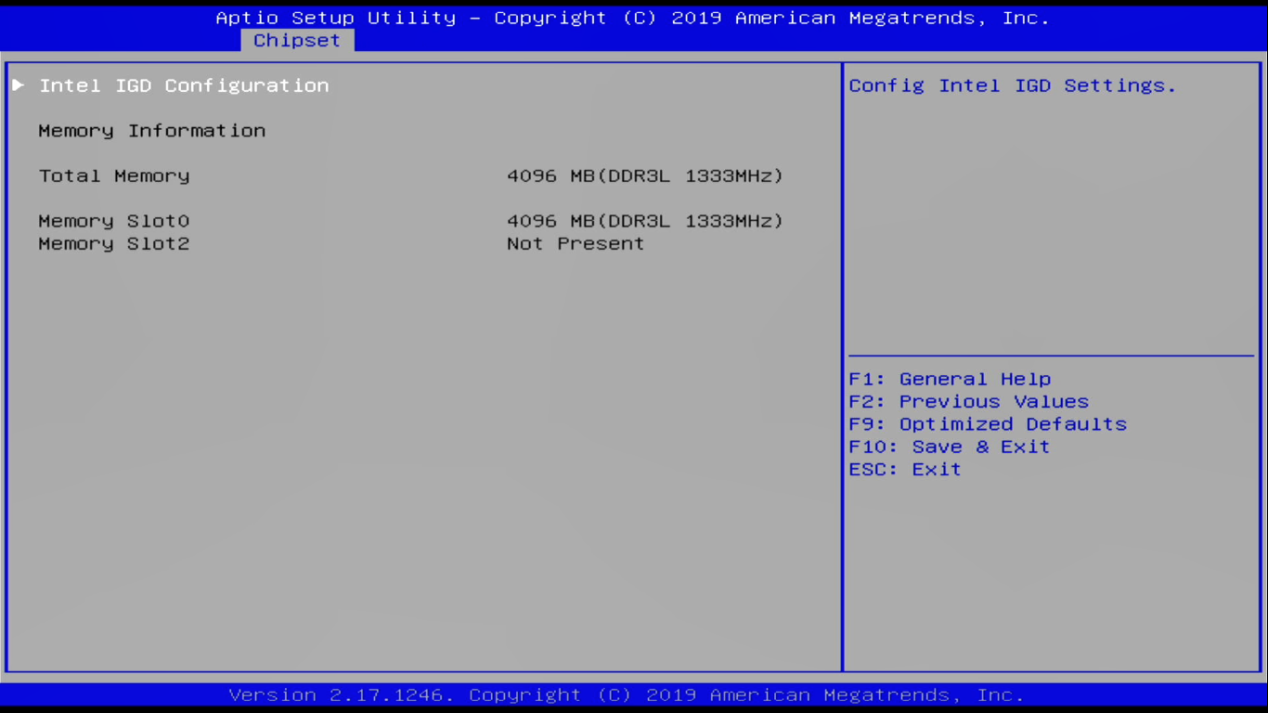

▶查看内存信息

Chipset---North---Memory Information

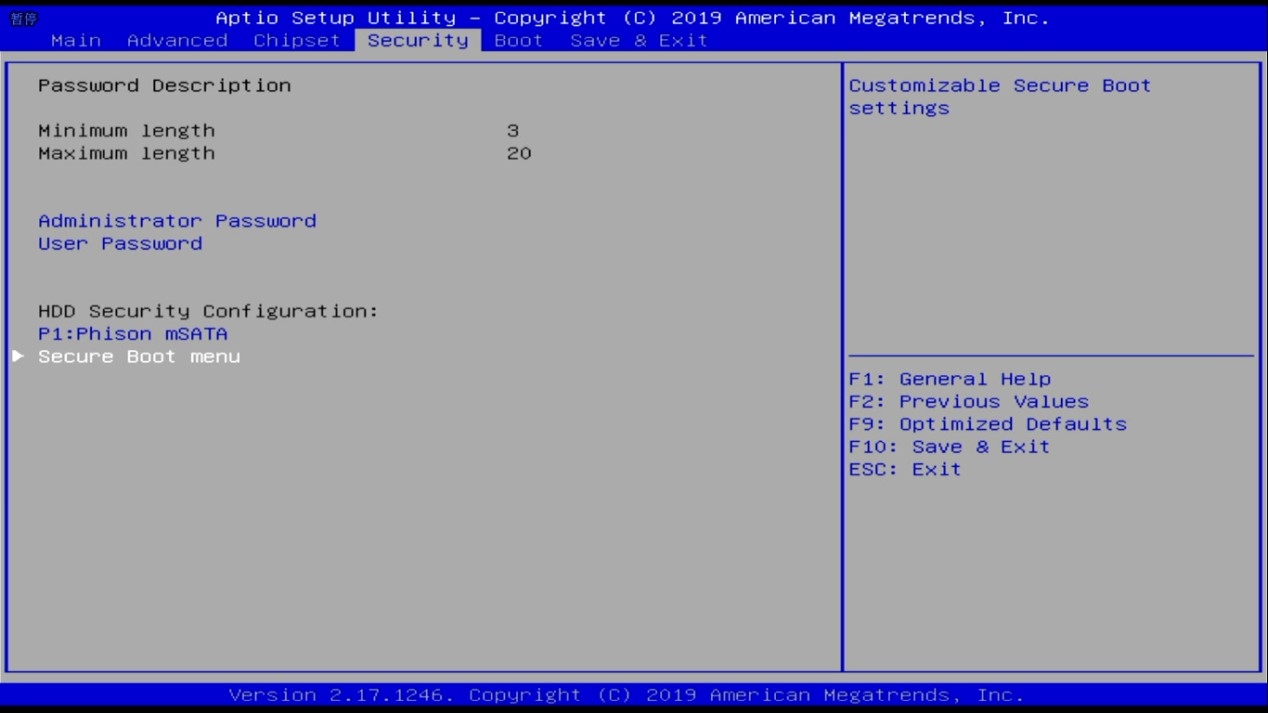

Security界面

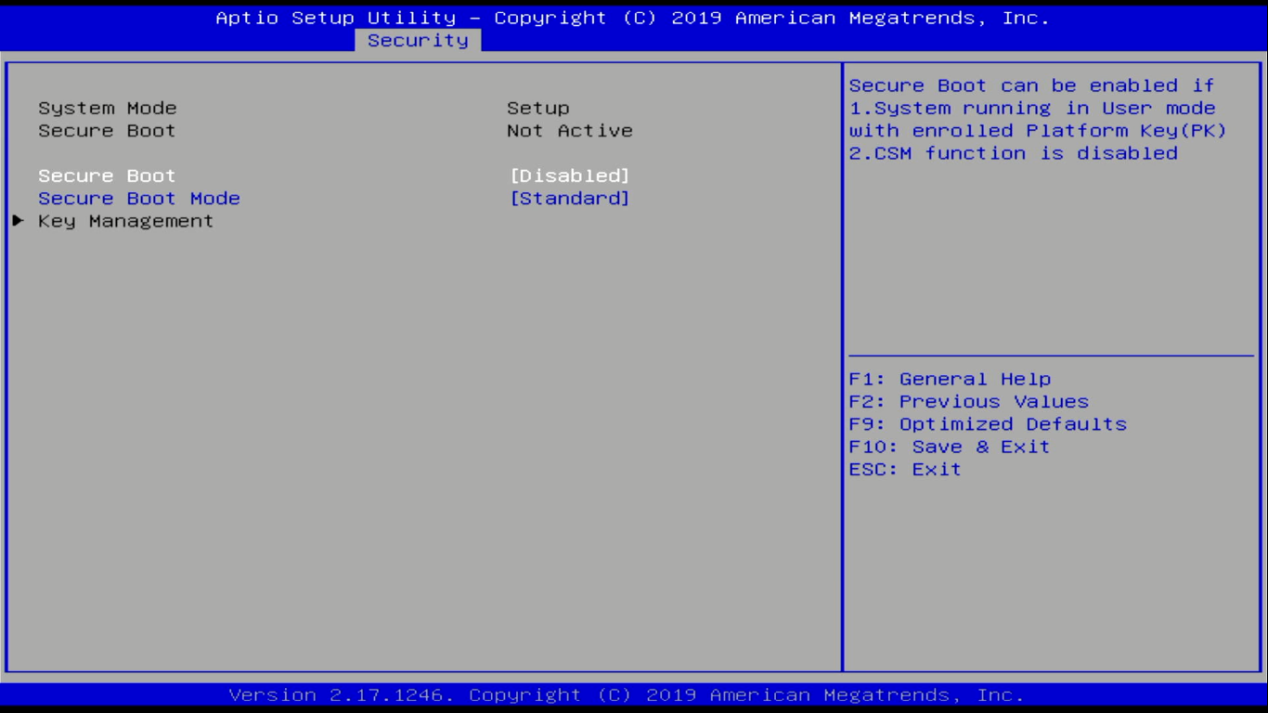

▶关闭安全启动

Secuity---Secure Boot menu--Disabled

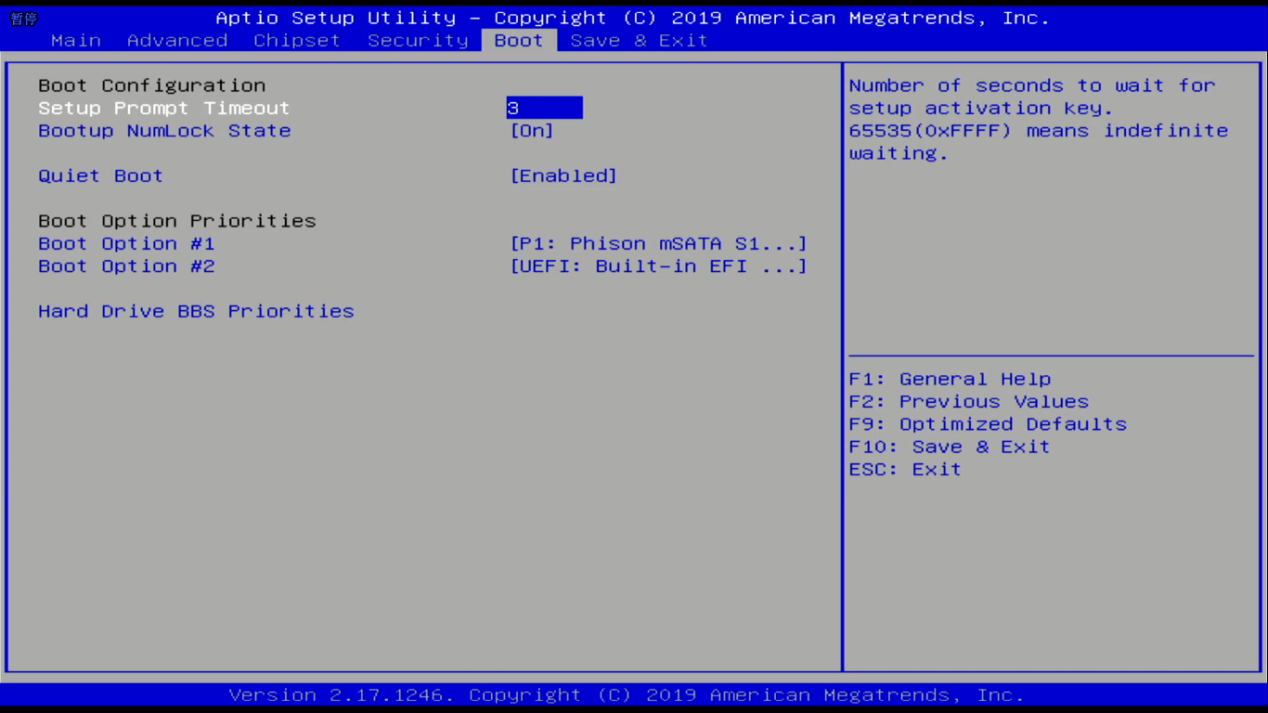

Boot界面

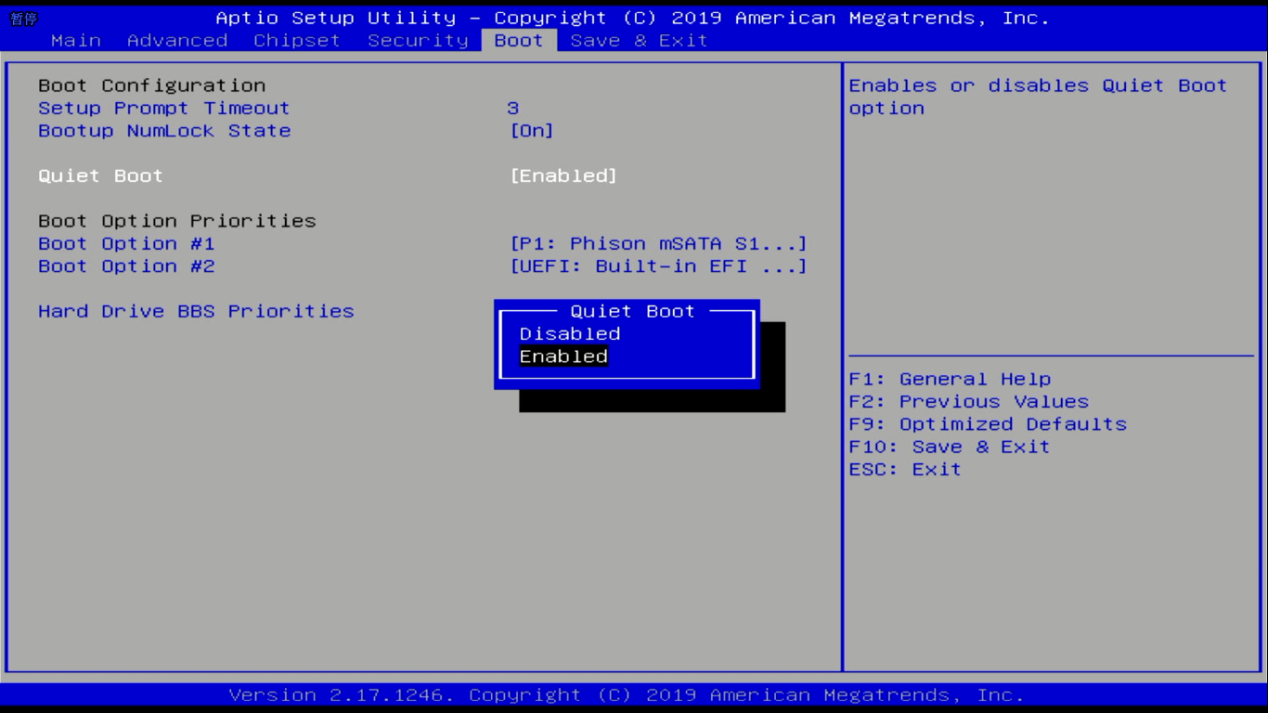

▶设置快速启动关闭/开启

Boot---Boot Configuration---Quiet Boot

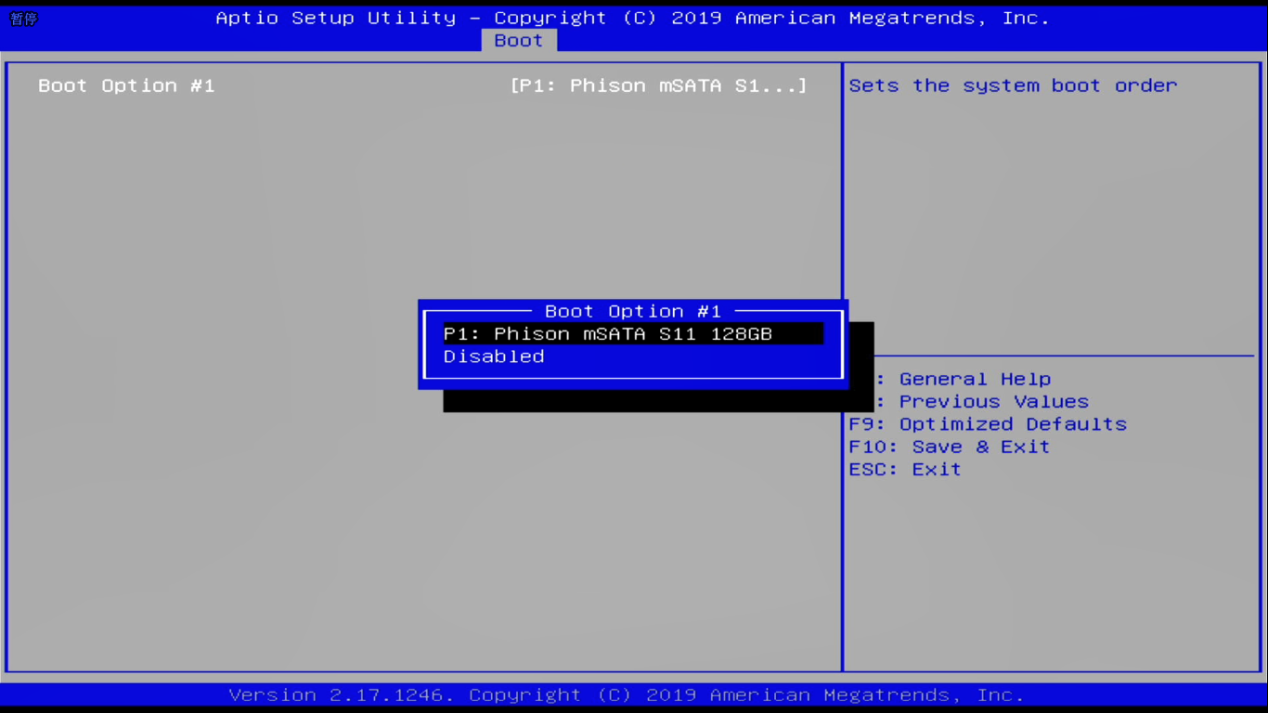

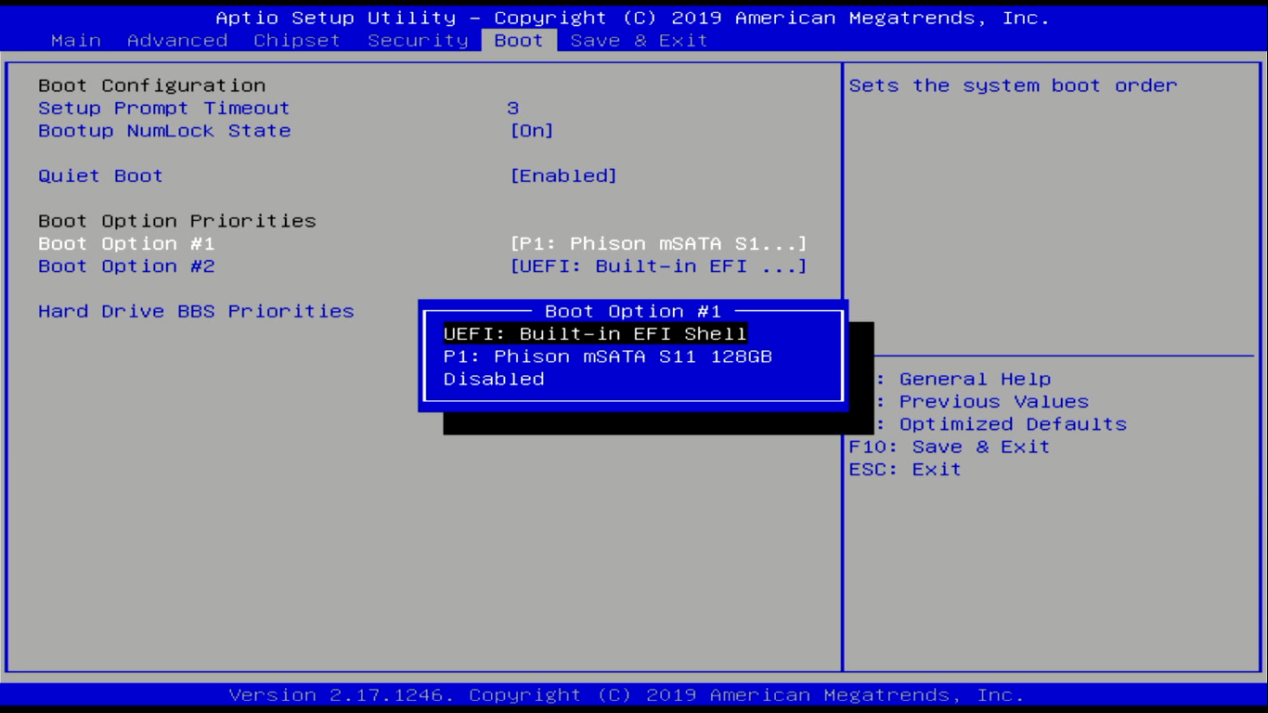

▶设置启动顺序优先级

Boot--Boot Option Proiorities---Boot Option #1

▶硬盘 BBS 优先级

Boot---Boot Configuration---Hard Drive BBS Priorities

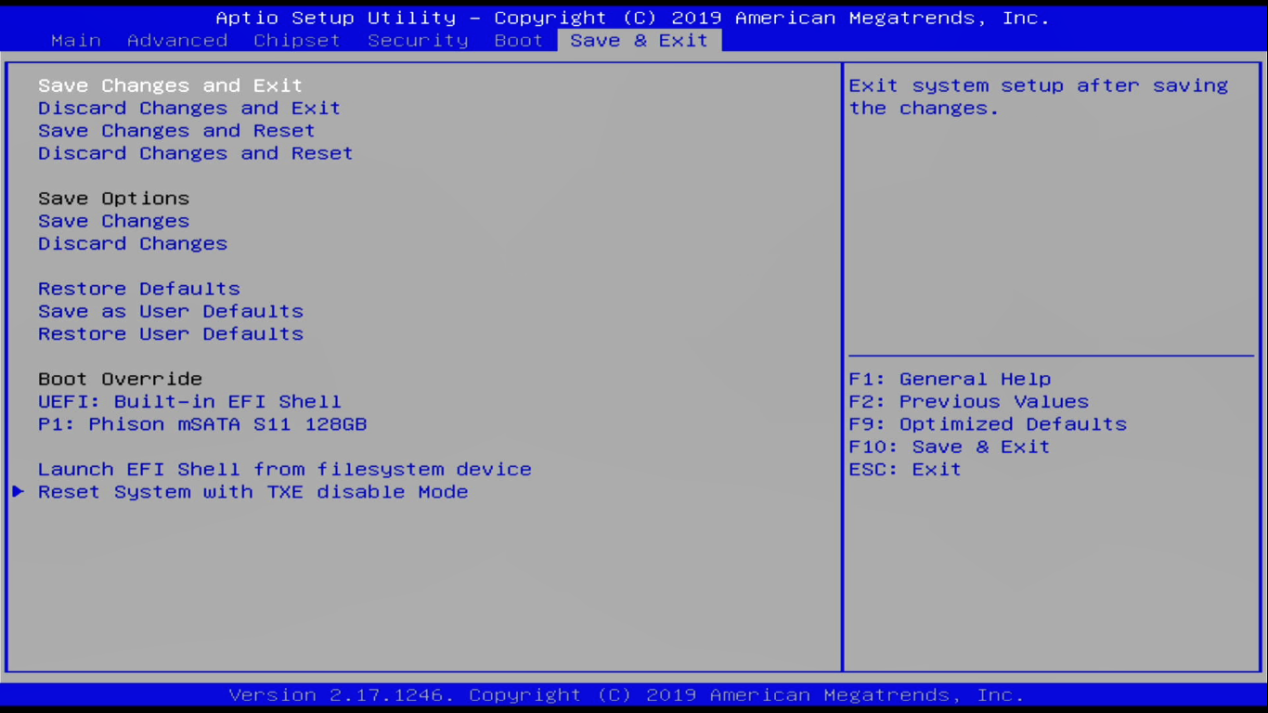

Save&Exit（保存、重置选项）

辅助键说明

F1:General Help帮助

F2:Previos Values前一次设置值

F9:Optimized Defaults 默认优化设置

F10:Save & Exit保存/退出

ESC: Exit 退出
